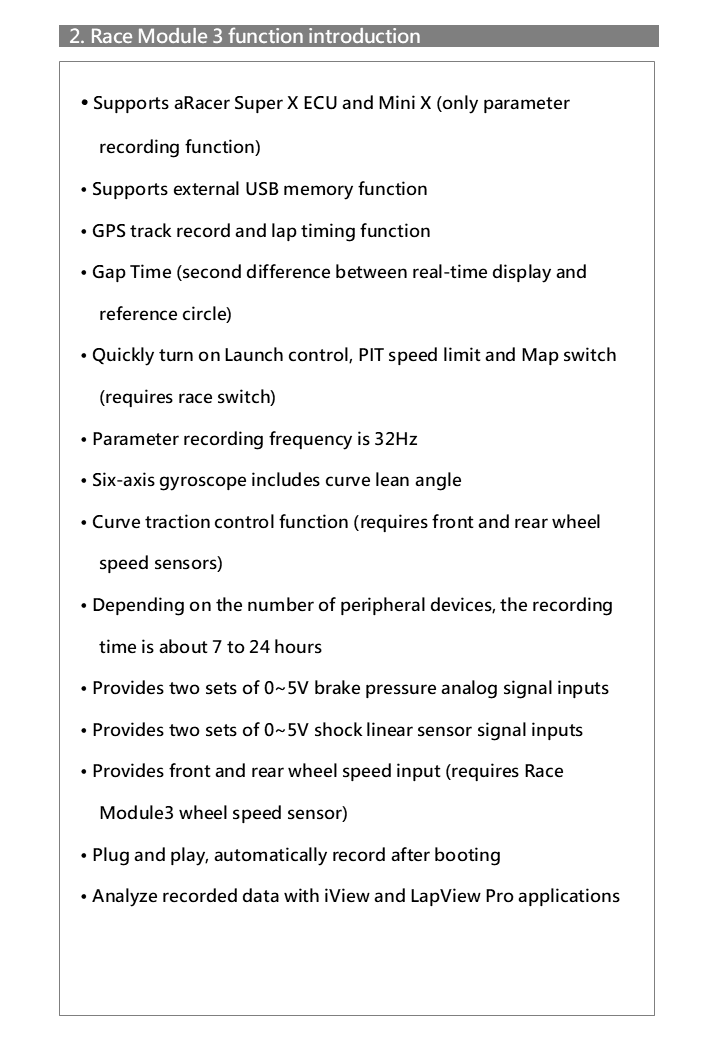

Control Module

Integrated Race Module and Logger Functions
Reduces the number of devices on the CAN bus as well as wiring volume and weight.

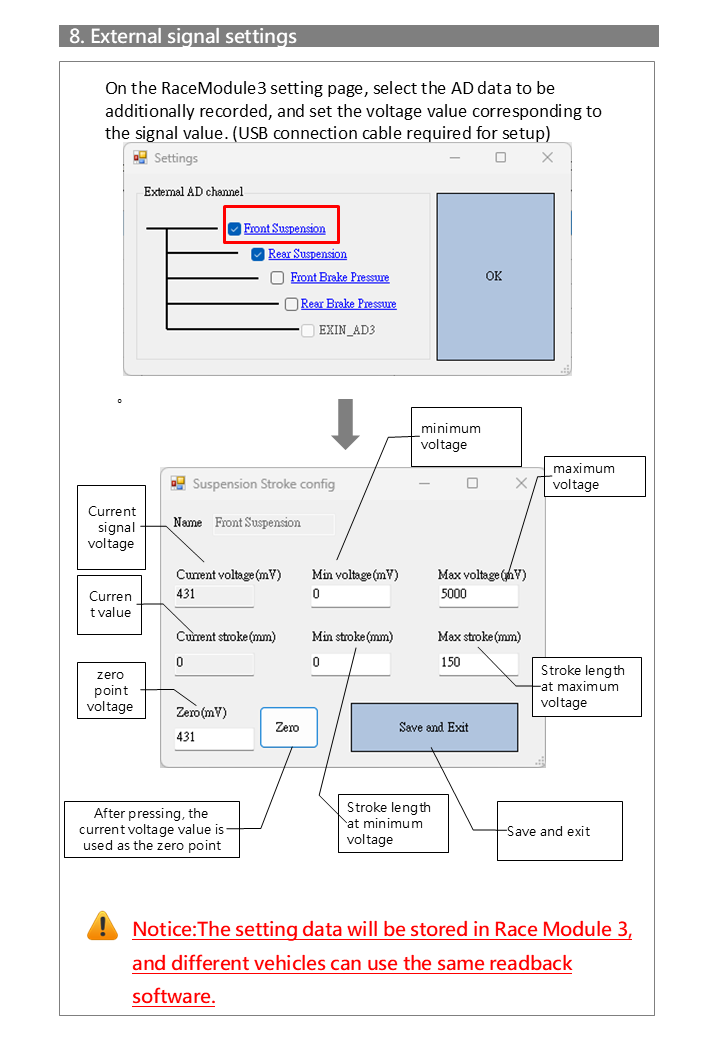

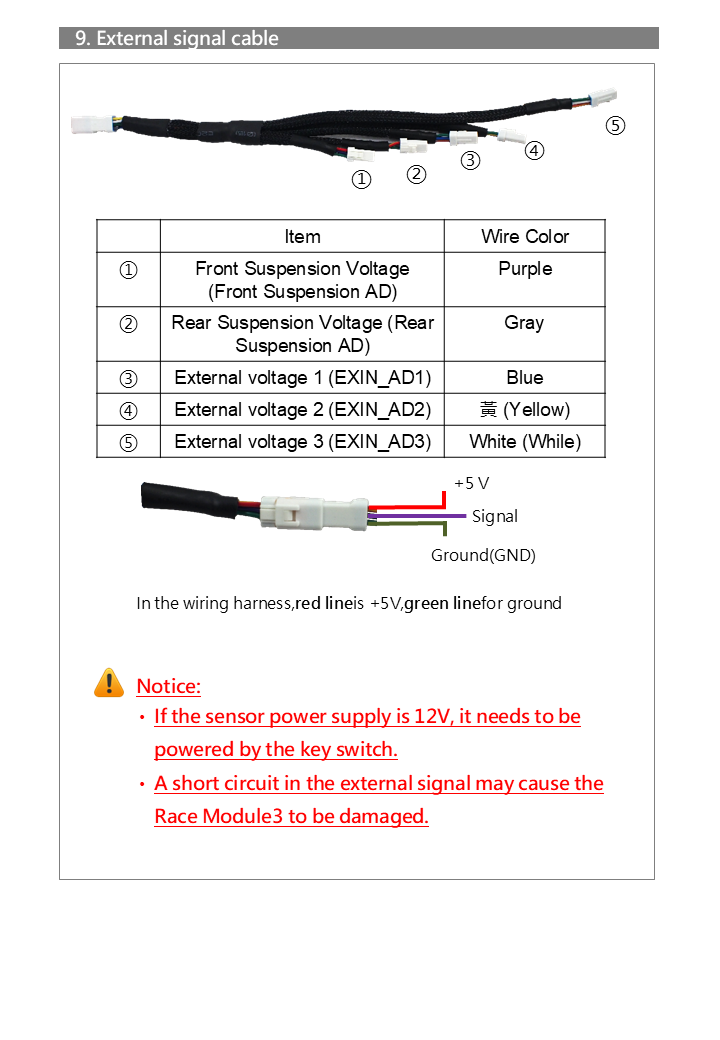

Real-Time External Sensor Reading via USB Power
External sensor signals can be read in real time when powered by USB, ideal for on-vehicle suspension zero calibration.

Selectable Logger Data Rates for External Sensors
Supports 512 Hz / 128 Hz / 32 Hz, suitable for suspension setup analysis.

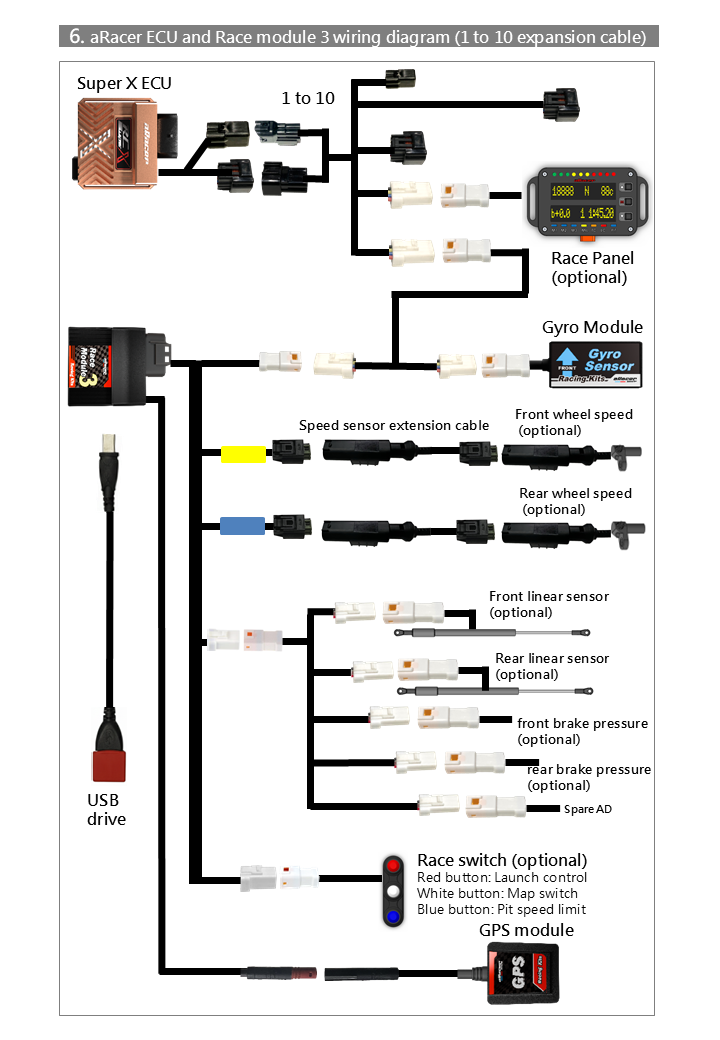

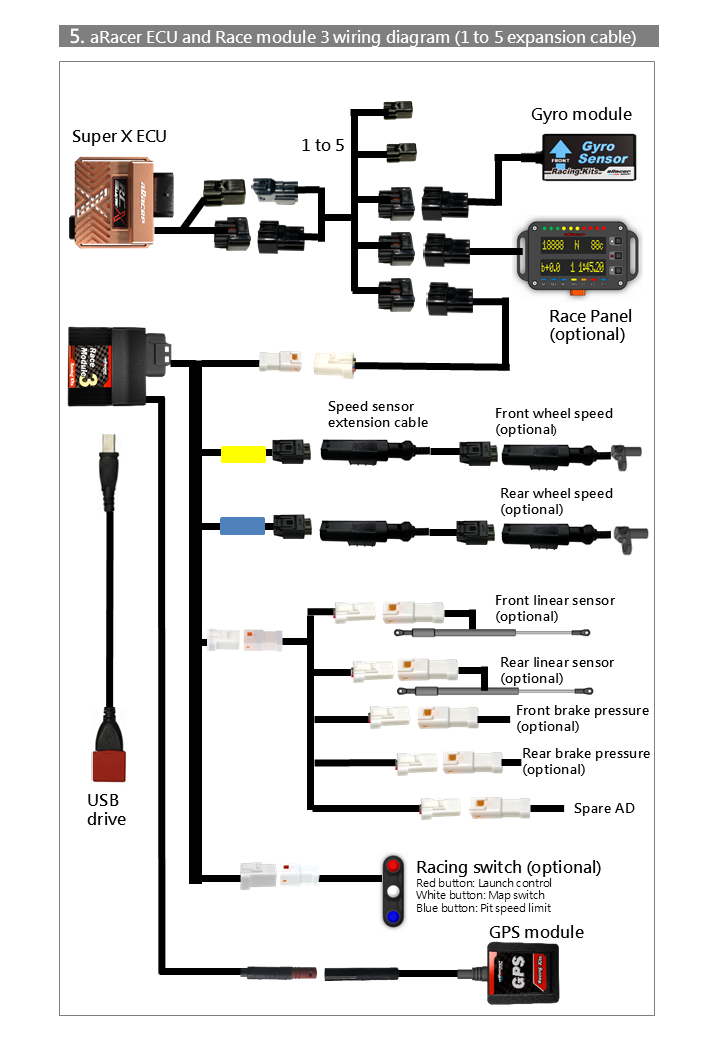

Real-Time Data Transmission via CAN Bus
External sensor data from the logger can be transmitted in real time via CAN bus to the ECU and displayed/recorded in SpeedTuning X.

New File Format for Faster Data Access
Significantly improves data loading speed
(30-minute log files load in approximately 37–90 seconds, depending on data content).

50% Capacity Increase to 480 MB
Supports approximately 7–24 hours of data logging.

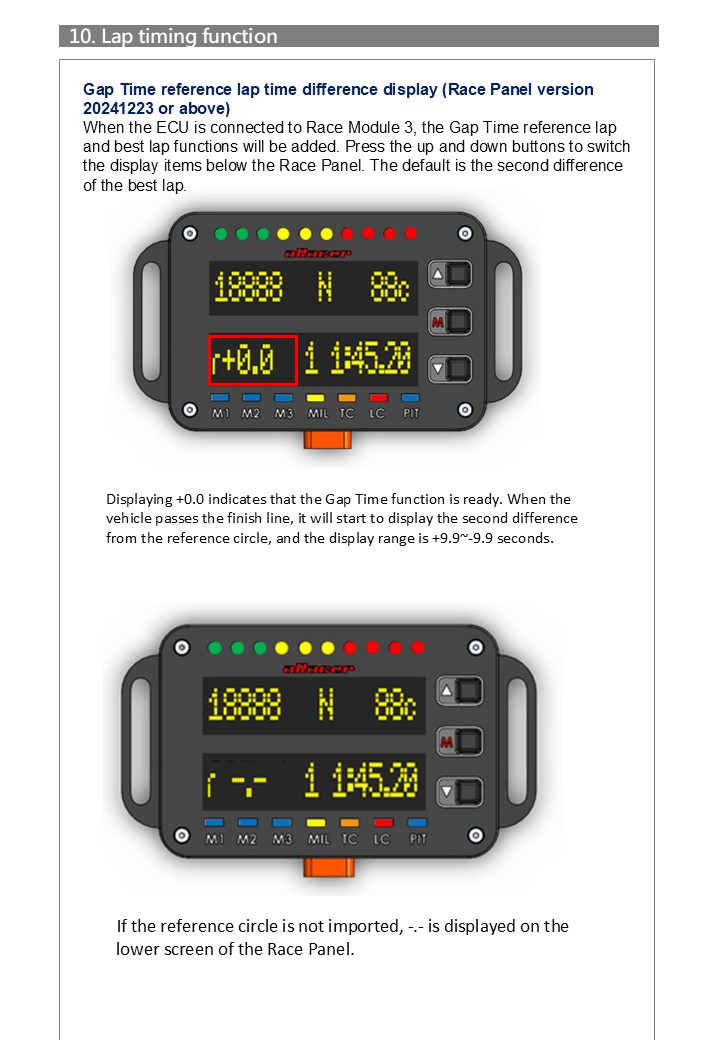

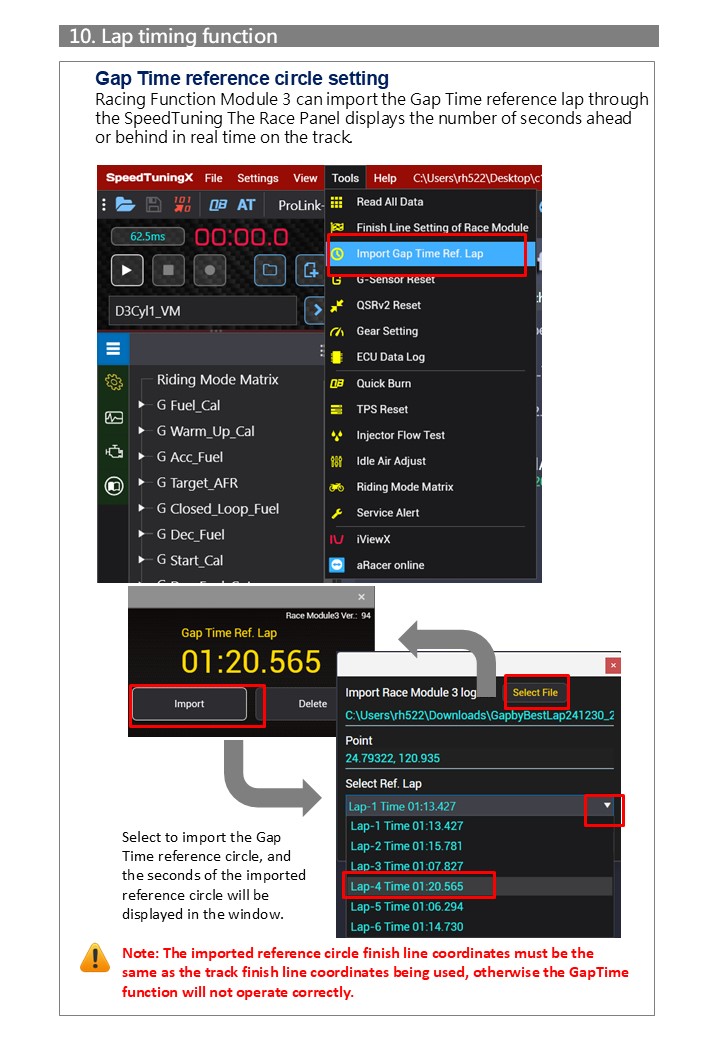

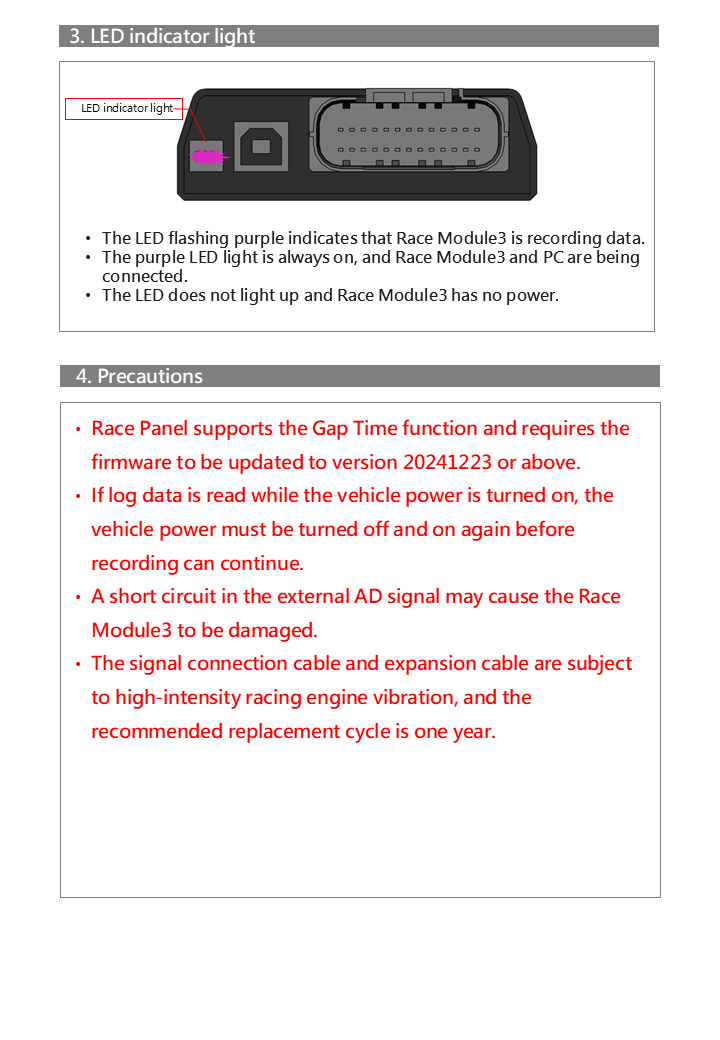

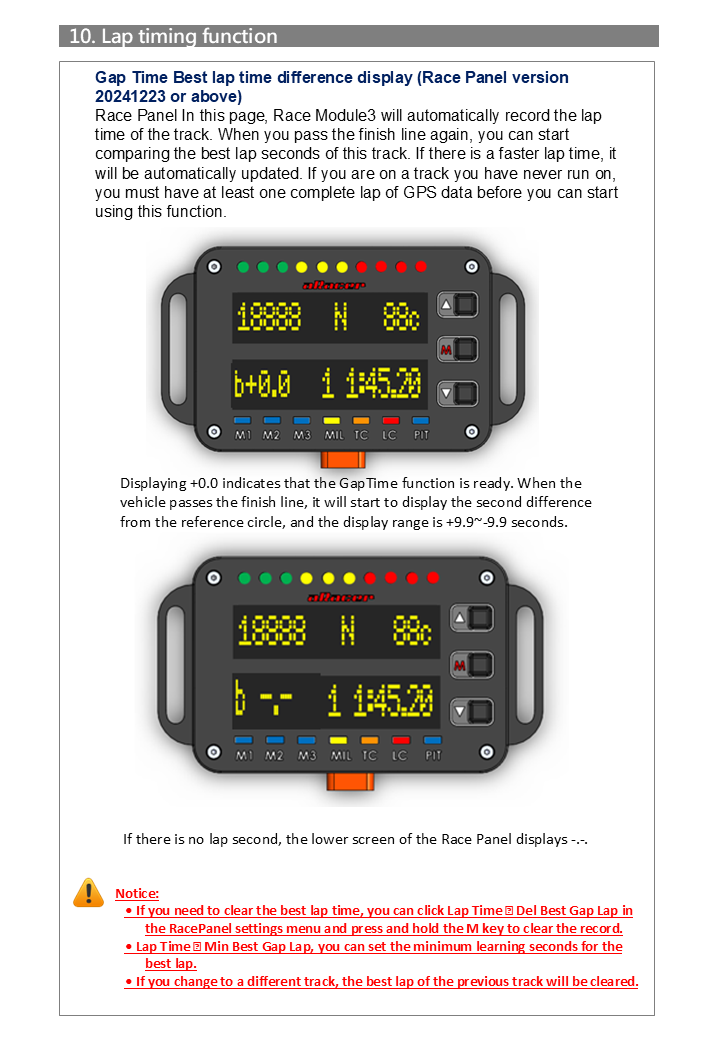

Real-Time Lap Time Gap Function
Supported after Race Panel version update.

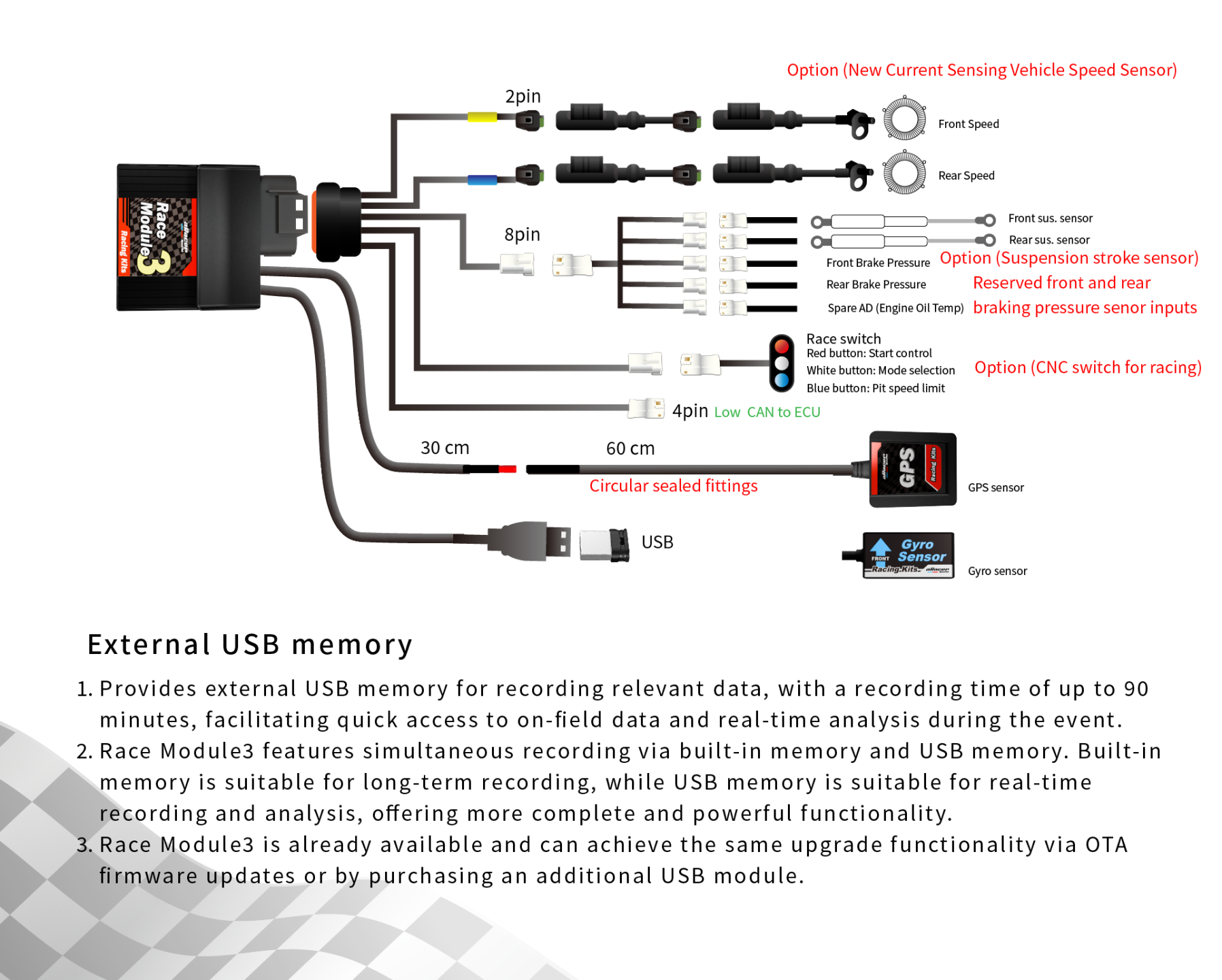

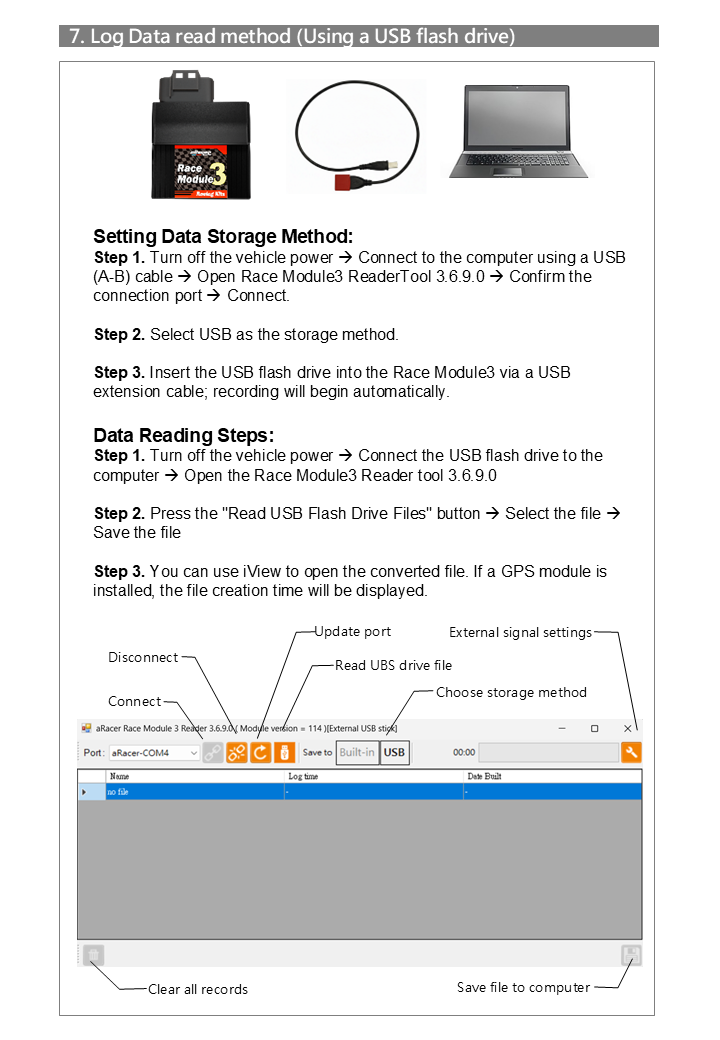

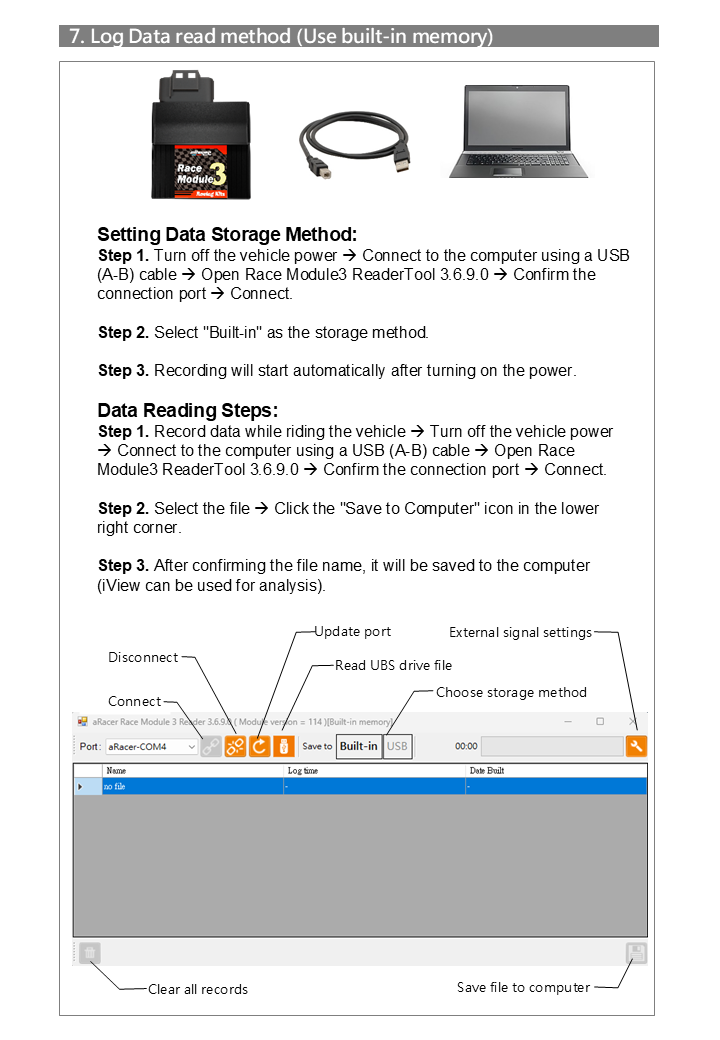

New External USB Functionality

Supports External USB Storage for Data Logging
Enables up to 90 minutes of continuous recording.

Fast Access to On-Track Data During Races
Allows quick data retrieval and real-time analysis.

Dual Recording: Internal Memory + USB Storage
Race Module 3 records simultaneously to built-in memory and USB storage.

• Internal memory: ideal for long-duration logging

• USB storage: optimized for quick access and real-time analysis
  Provides a more complete and powerful logging solution.

Race Module 3 Now Available
Existing units can be upgraded via OTA firmware update and optional USB module purchase to enable the same enhanced features.
