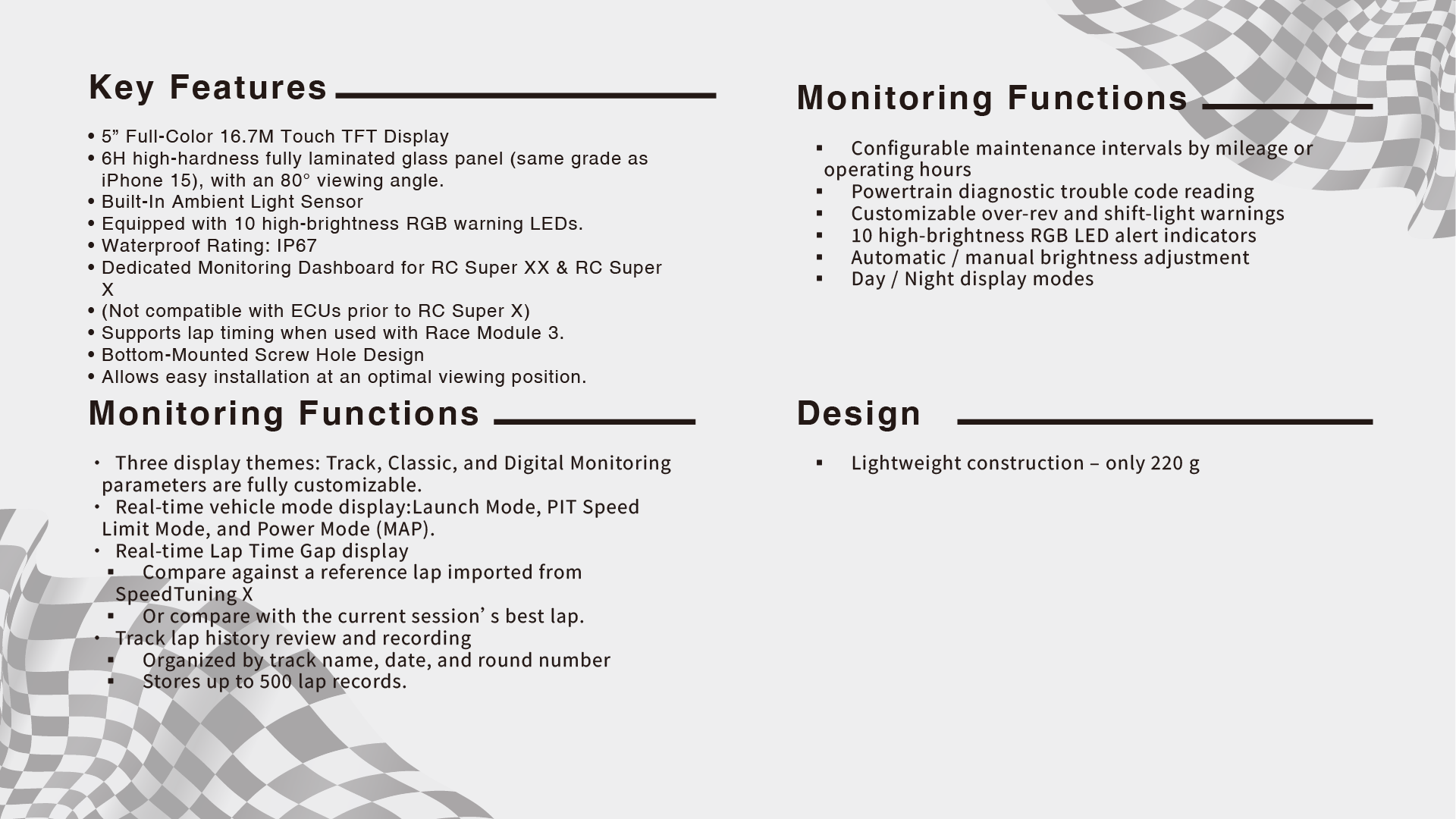

Multi-Functions Display

5” Full-Color 16.7M Touch TFT

6H Hardness Full-Lamination Glass Panel (Same Grade as iPhone 15), 80° Viewing Angle
Built-In Ambient Light Sensor, 10 x RGB Warning LEDs
Waterproof Rating: IP67

Dedicated Monitoring Dashboard for RC Super XX & RC Super X
(Not compatible with ECUs prior to RC Super X)
Supports lap timing when used with Race Module 3

Functions Monitoring

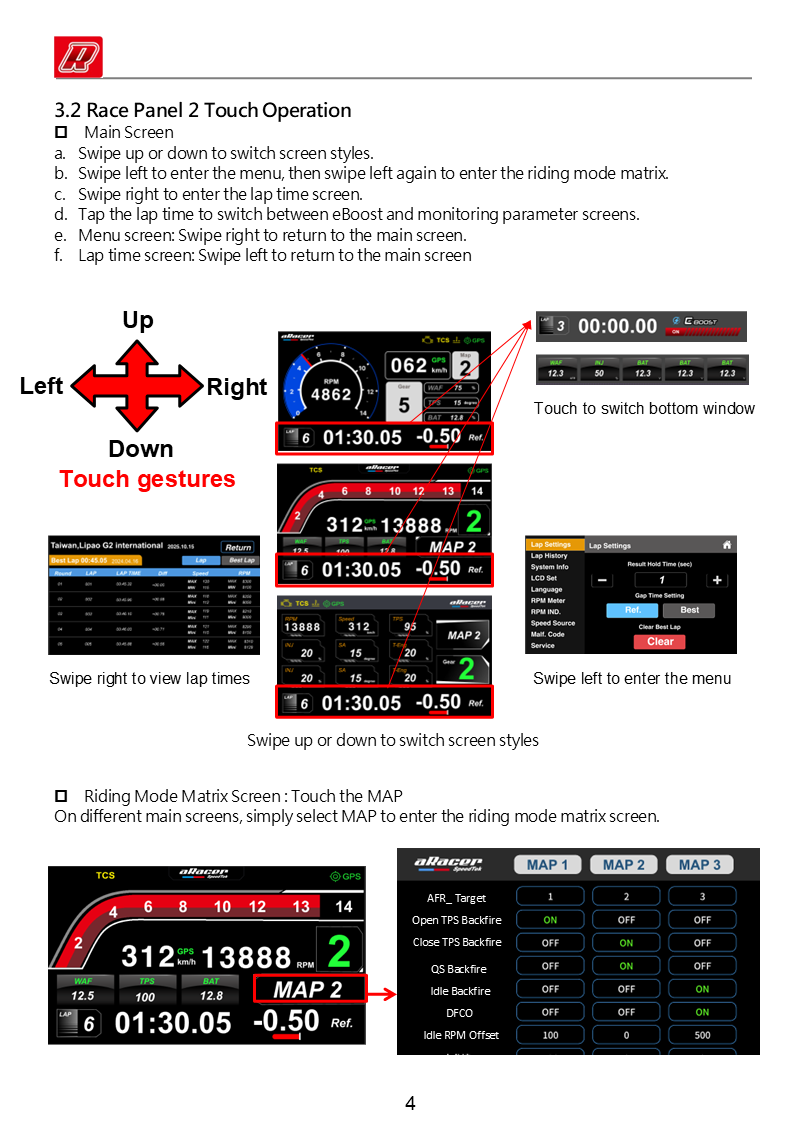

• Three display themes: Track, Classic, Digital

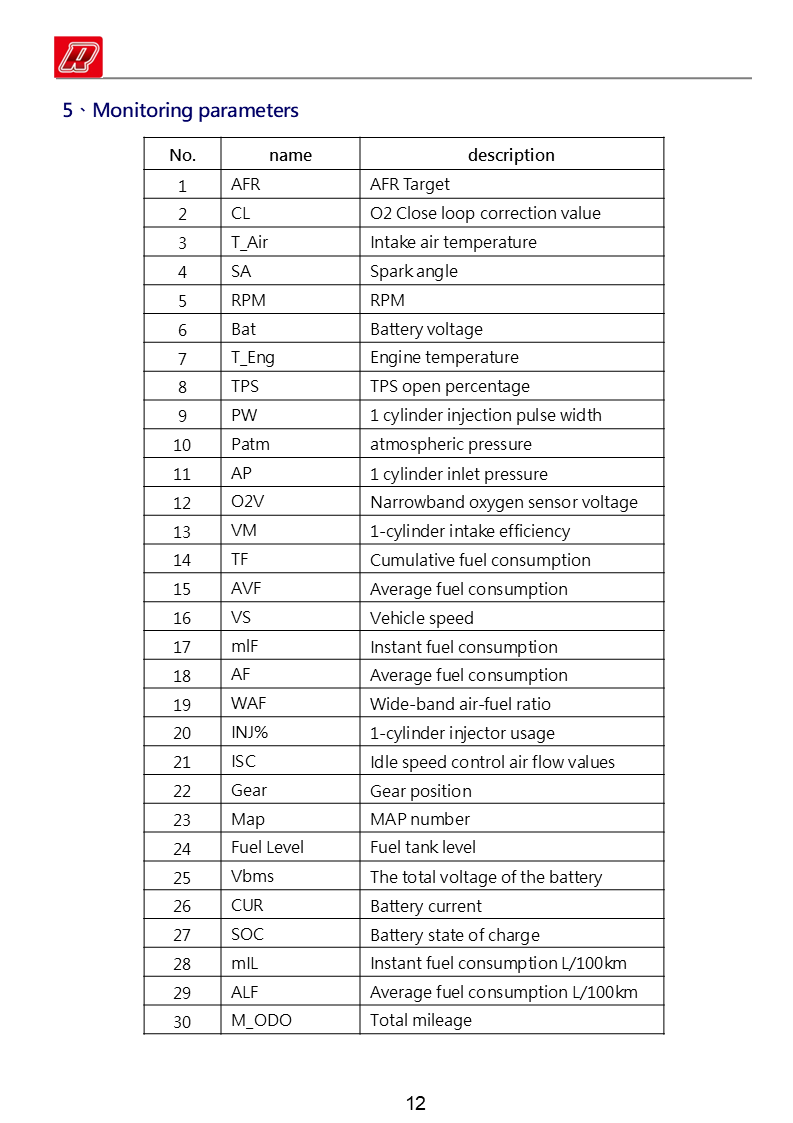

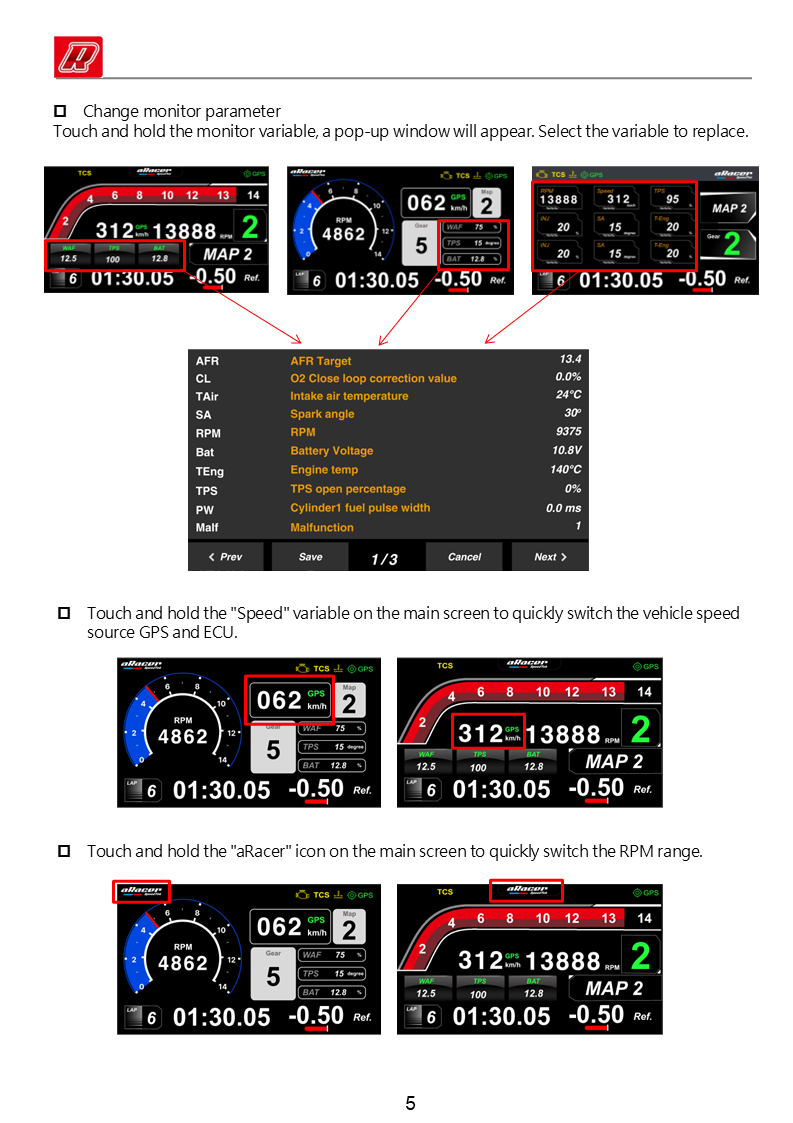

• All monitoring parameters are fully customizable

• Real-time vehicle mode display: Launch Mode, PIT Speed Limit Mode, Power Mode (MAP)

• Real-time Lap Time Gap display

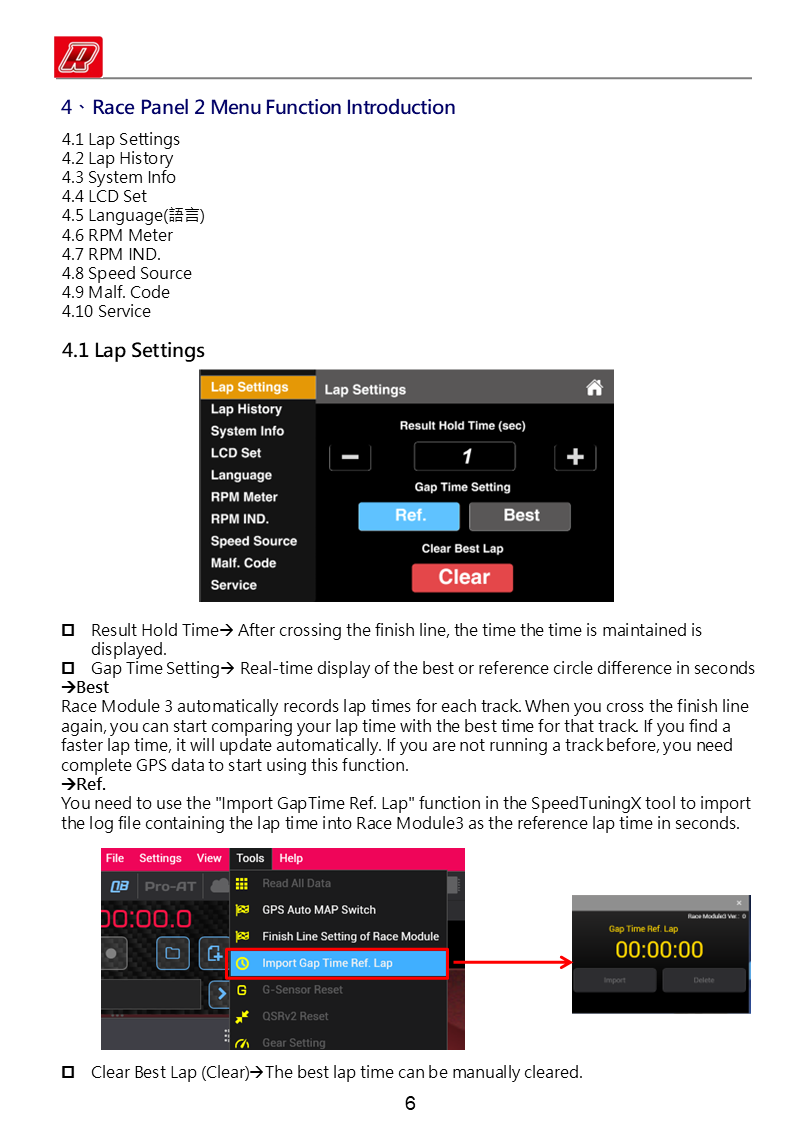

  • Compare with a reference lap imported from SpeedTuning X

  • Or compare with the current session’s best lap

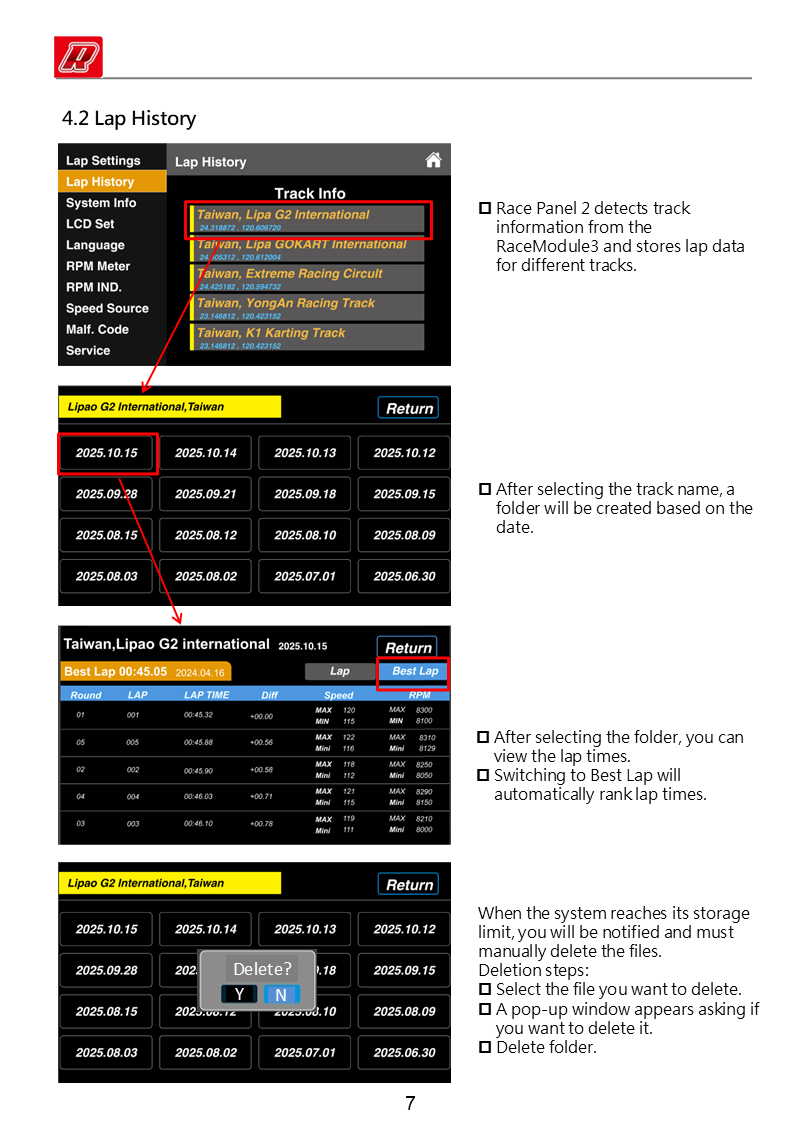

• Track lap history recording and review

  • Organized by track name, date, and round

  • Stores up to 500 lap records

Maintenance & Diagnostics

• Customizable maintenance interval settings (by mileage or operating hours)

• Powertrain diagnostic trouble code reading

Riding & Performance Alerts

• Customizable over-rev and shift-light warnings

• High-brightness 10 RGB LED warning indicators

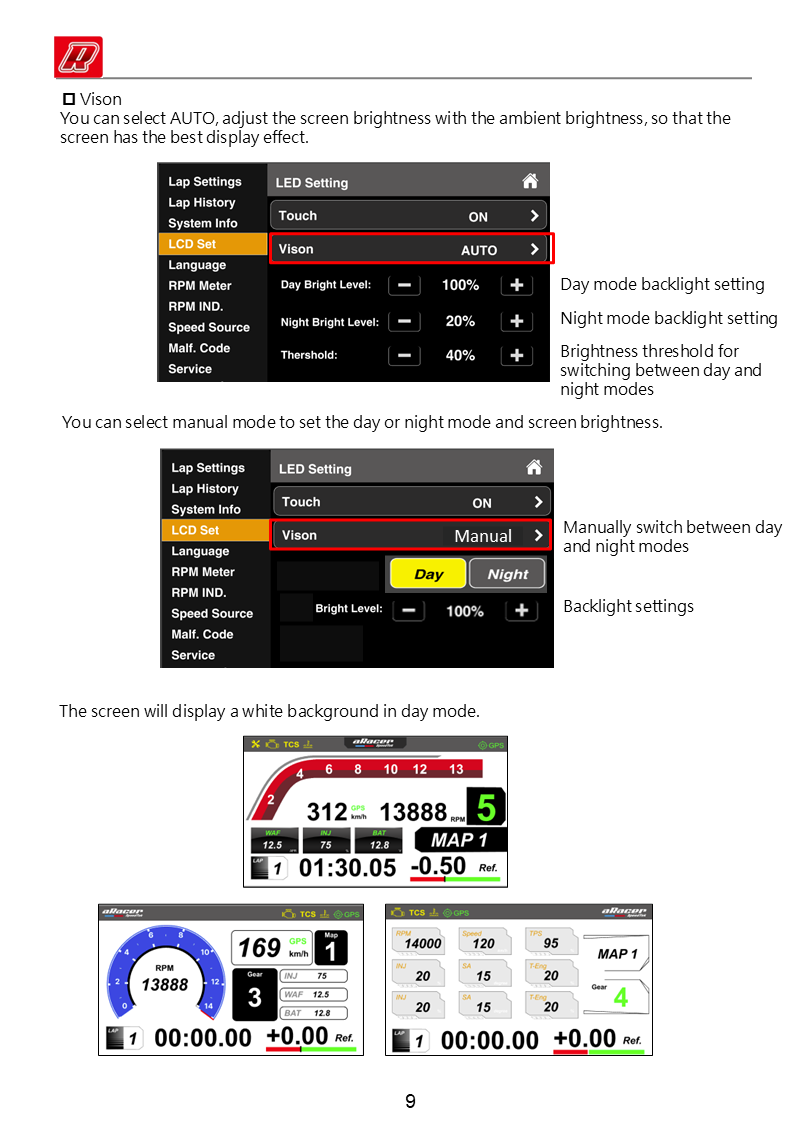

• Auto / Manual brightness adjustment

• Day / Night display modes

Design & Installation

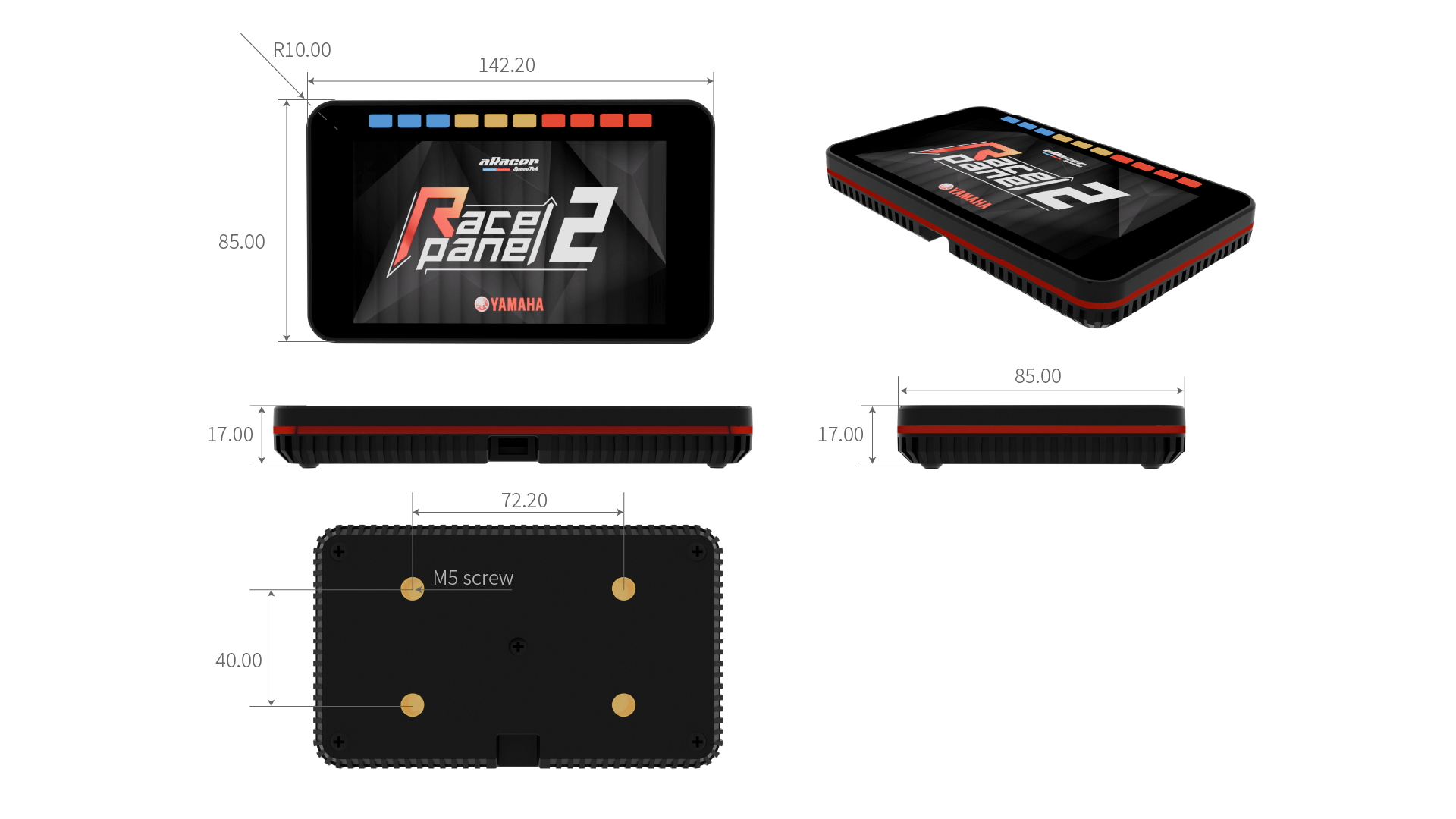

• Lightweight construction: only 220 g

• Bottom-mounted screw holes for easy installation at optimal viewing angles
